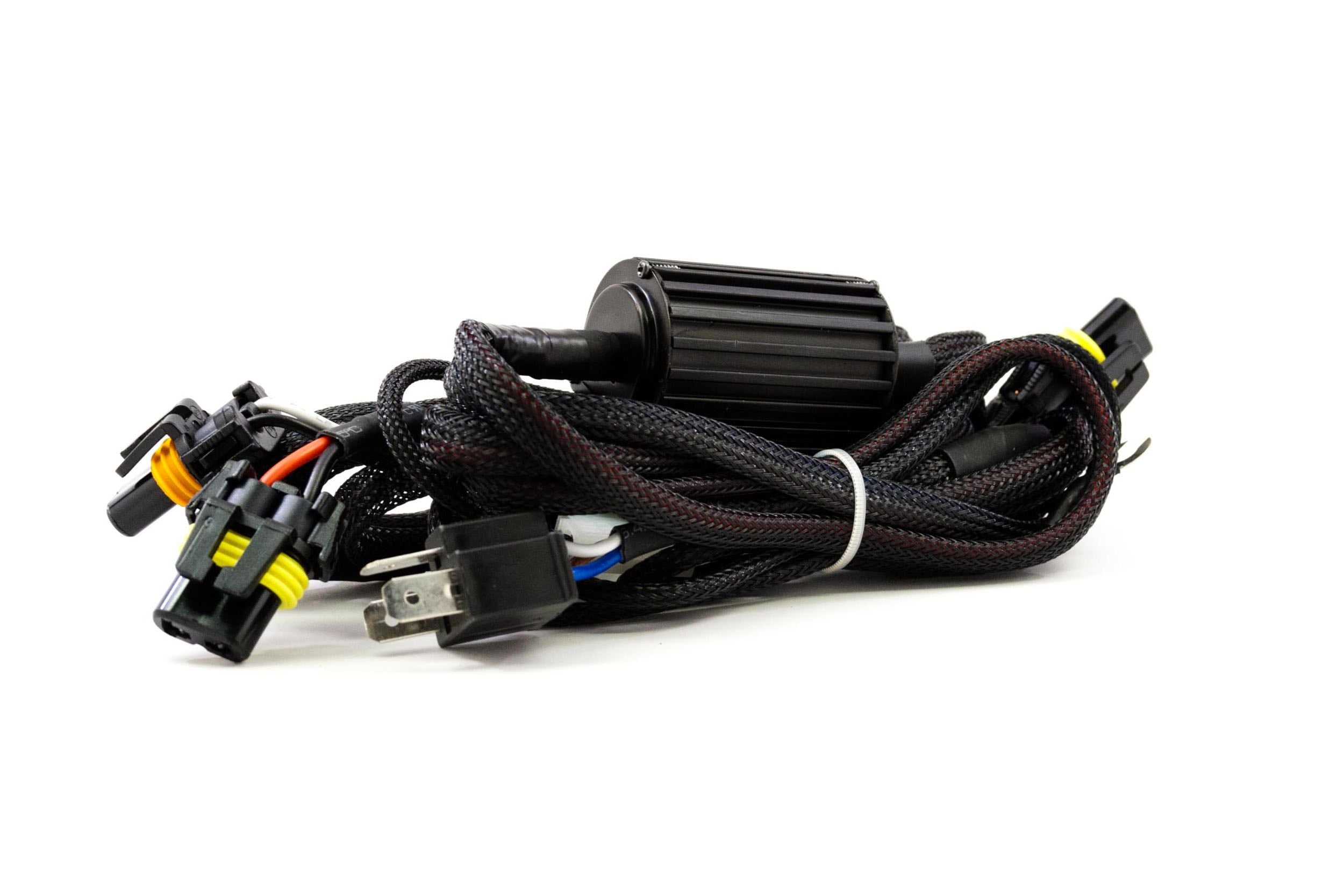

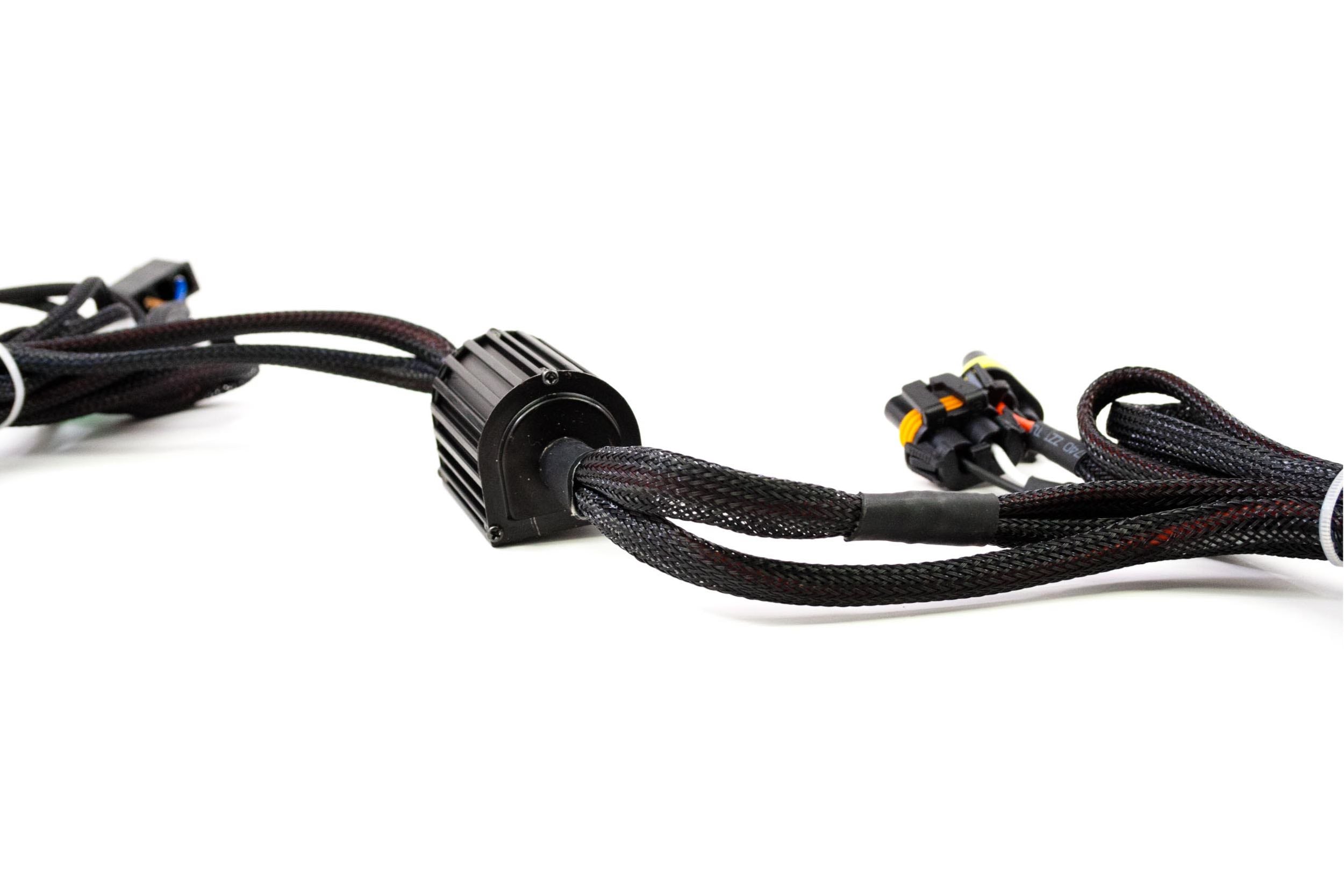

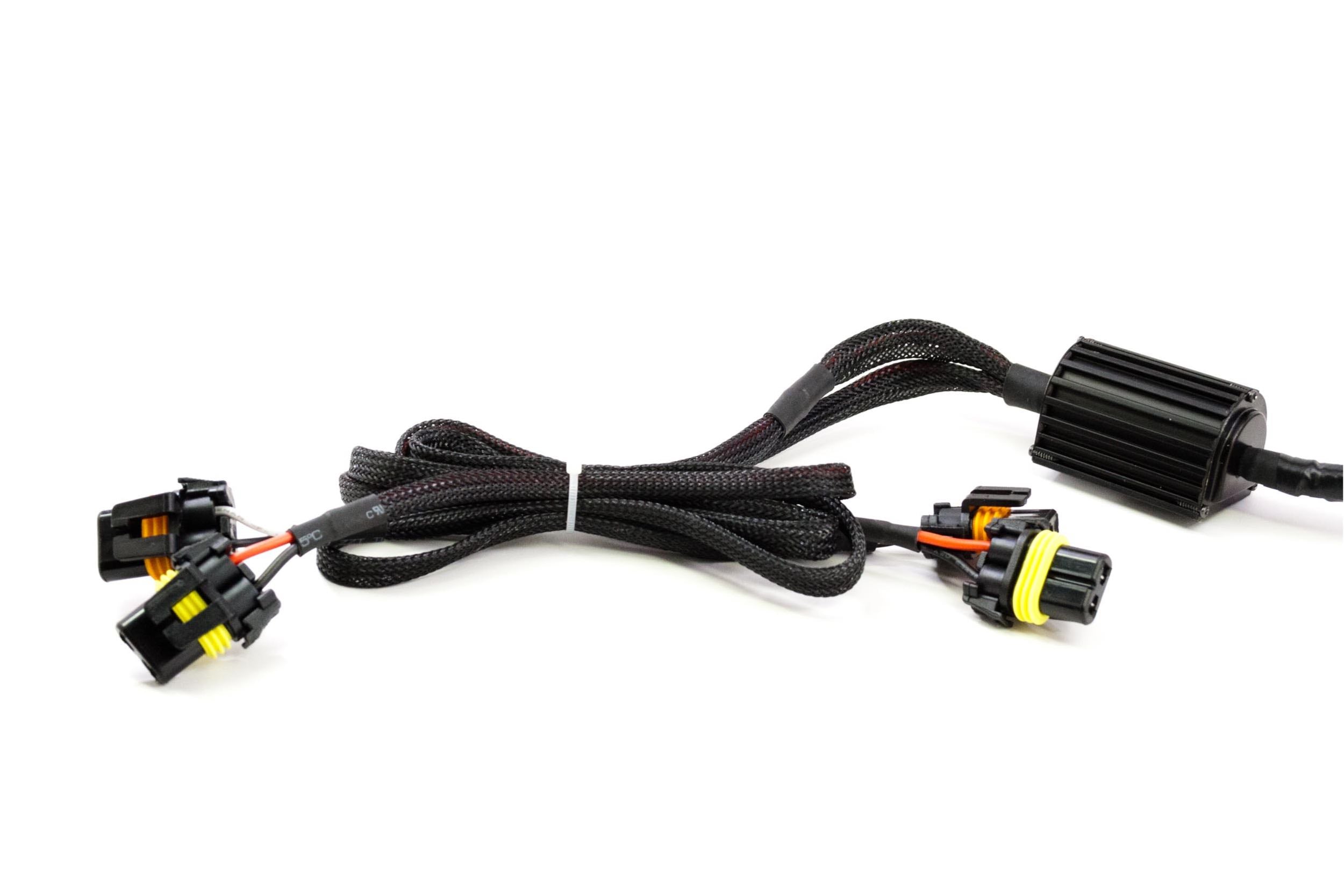

Morimoto Relay Harness: MotoCycle Single Output (7)
Product Details Overview and manufacturer notes
Power Delivery: The MotoCycle relay harness is designed to deliver steady voltage to your HID system directly from the bike's battery.
Factory headlight outputs are really only designed to power a halogen light bulb and with the not-so-stable electrical systems on motorcycles - that could mean bad news for the longevity of your upgraded headlights without a harness.
One of a Kind: The Morimoto H7 Single-Lamp Motorcycle specific harness is the first and only high-quality harness on the market that's designed for retrofitting HID's into the headlights on motorcycles.
It's been a staple in our product line for years as the right go-to for the job.
In Comparison: To any other harness we offer, the MotoCycle spec's wire lengths are ideal for the layout on a motorcycle.
It is not designed for a car's engine bay and has to be modified or rigged to work on a bike - this one should be ready to go out of the box.
Light Up: Each harness will power one HID ballast from one input trigger.
Perfect for retrofitting either a single projector or HID in your low beam (or high beam) while still retaining independent control of the other lamp with your original switch.
Work of Art: Aside from being a technical masterpiece that works like a charm, it's also a work of art.
With its braided TechFlex insulation and sleek-looking black anodized relay - it will surely look factory-fresh when routed through your fairings.
Tech Specs
- INPUT TRIGGER: 1x H7 Male
- BALLAST OUTPUT: 1x 9006 Female
- 12V POWER: 1x Nickel-Plated Ring-Type
- GROUND: 1x Nickel-Plated Ring-Type
- FUSE: Inline 25A
What's Included
- Wiring: 1x Morimoto MotoCycle Relay Harness (H7 / Single Output)
- Warranty: 2 Years
Compatibility
- FITMENTS: Motorcycles w/ H7 Low Beam or High Beam
- HID SYSTEMS: 35w or 55w
- HAS TIME DELAY: Yes
Product Notes
- DOT compliant: Yes
- Manufacturer country: CN
- Prop 65 warning: Yes
